Mechanical seal for pump R-128 38, SIC/SIC, EPDM, 304, T5S43

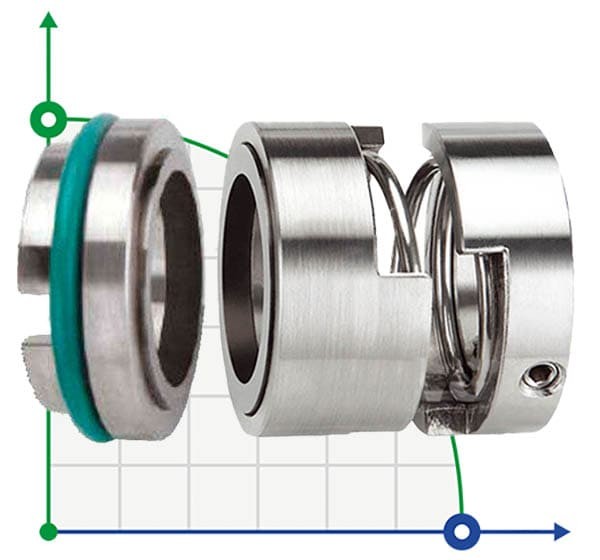

Mechanical seal for pump R-128 38, SIC/SIC, EPDM, 304, T5S43

Click image for a larger view

Code: 13642_38__SIC/SIC__EPDM__304__T5S43

(0 review)

Producer	BTS Engineering
Shaft diameter	38
Rubber type	EPDM
Material of metal part	304
Stationary and rotating face	SIC/SIC
Operating temperature	-20°C +200°C
Pressure	0,8 MPa
Rotation velocity	10 m/s
Seal type	R-128
Type of conta-ring	T5S43
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10

Show all features (14)

Documentation

Description Mechanical seal for pump R-128 38, SIC/SIC, EPDM, 304, T5S43

Mechanical seal R-124 (cuff Pompey) is used at temperatures ranging from-40 to + 120°C, a pressure up to 1, 2 MPa and the rotation speed to 15 m/sec. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Category: R-128, 128P

Features Mechanical seal for pump R-128 38, SIC/SIC, EPDM, 304, T5S43

Producer	BTS Engineering
Shaft diameter	38
Rubber type	EPDM
Material of metal part	304
Stationary and rotating face	SIC/SIC
Operating temperature	-20°C +200°C
Pressure	0,8 MPa
Rotation velocity	10 m/s
Seal type	R-128
Type of conta-ring	T5S43
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10
