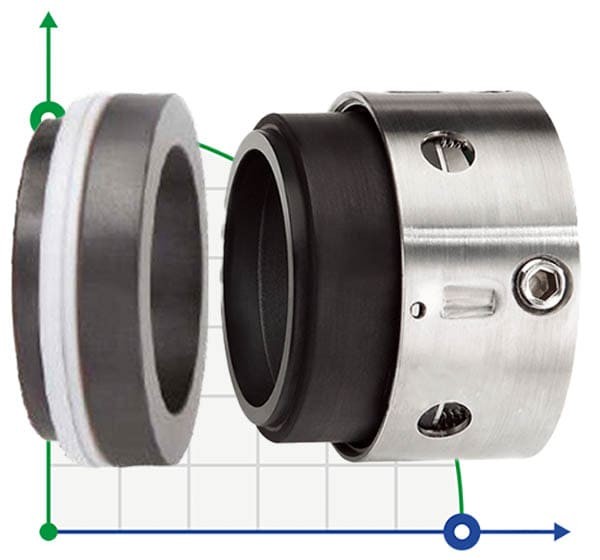

Mechanical seal R-59B 65, CAR/SIC, PTFE, 304, ВО

Mechanical seal R-59B 65, CAR/SIC, PTFE, 304, ВО

Click image for a larger view

Code: 13697_65__CAR/SIC__PTFE__304__ВО

(0 review)

Producer	BTS Engineering
Shaft diameter	65
Rubber type	PTFE
Material of metal part	304
Stationary and rotating face	CAR/SIC
Operating temperature	-40°C +200°C
Pressure	5.2 MPa
Rotation velocity	25 m / s
Seal type	R-59B
Type of conta-ring	ВО
Application	KSB
Analogue for	Vulcan 1659B, AESSEAL M04, AESSEAL M04U, Burgmann BT-C56.KB, Anga VBT
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10

Show all features (16)

Documentation

Description Mechanical seal R-59B 65, CAR/SIC, PTFE, 304, ВО

R-59B mechanical seal is used at temperatures ranging from -40 to + 120°C, a pressure of 5 MPa and 2 rotation speed of 25 m/sec. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Category: R-59B

Features Mechanical seal R-59B 65, CAR/SIC, PTFE, 304, ВО

Producer	BTS Engineering
Shaft diameter	65
Rubber type	PTFE
Material of metal part	304
Stationary and rotating face	CAR/SIC
Operating temperature	-40°C +200°C
Pressure	5.2 MPa
Rotation velocity	25 m / s
Seal type	R-59B
Type of conta-ring	ВО
Application	KSB
Analogue for	Vulcan 1659B, AESSEAL M04, AESSEAL M04U, Burgmann BT-C56.KB, Anga VBT
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10
