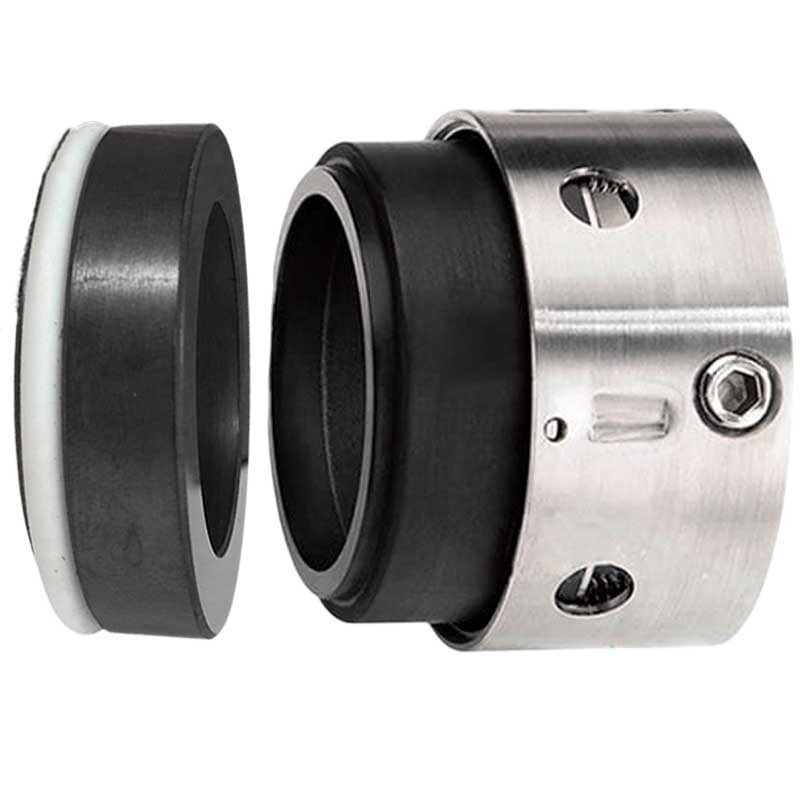

Mechanical seal R-59B 95, CAR/SIC, PTFE, 316, BO

Code: 1053055
(0 review)
Stationary and rotating faceCAR/SIC
Material of metal partAISI 316 stainless steel
Shaft diameter95
Outer diameter of the fixed ring, mm120
Type of conta-ringBO
ProducerBTS Engineering
Operating temperature-40°C +200°C
Pressure5 MPa
Rubber typePTFE
Rotation velocity25 m / s
Seal typeR-59B
ApplicationKSB
Analogue forVulcan 1659B, AESSEAL M04, AESSEAL M04U, Burgmann BT-C56.KB, Anga VBT
Gross weight, kg1.6
Length of transport packing, cm13,5
Width of transport packing, cm13,5
Height of transport packing, cm12
Show all features (17)
Warehouse Ukraine: Pre-order only
Warehouse Poland: Pre-order only
Warehouse Germany: Pre-order only
Warehouse Italy: Pre-order only
$644 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
Multi-spring mechanical seal, balanced, with fluoroplastic wedge, for stepped shafts, R-59B is used at temperatures from -40 to + 200°C, with a pressure of up to 5.0 MPa and a rotation speed of 25 m/sec. Analogue of John Crane 59B mechanical seals Mechanical seal for Wilo pump, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos, for KSB pump, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for SPERONI pump, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for Tuchenhagen pump, ALFA LAVAL, Donjoy, Mission Magnum.
Category: R-59B
Stationary and rotating faceCAR/SIC
Material of metal partAISI 316 stainless steel
Shaft diameter95
Outer diameter of the fixed ring, mm120
Type of conta-ringBO
ProducerBTS Engineering
Operating temperature-40°C +200°C
Pressure5 MPa
Rubber typePTFE
Rotation velocity25 m / s
Seal typeR-59B
ApplicationKSB
Analogue forVulcan 1659B, AESSEAL M04, AESSEAL M04U, Burgmann BT-C56.KB, Anga VBT
Gross weight, kg1.6
Length of transport packing, cm13,5
Width of transport packing, cm13,5
Height of transport packing, cm12
Loading...
Products from the same category
Mechanical seal for pump R-59B 85, ​​CAR/SIC, PTFE, 304, BP
1053050
Stationary and rotating face
CAR/SIC
Material of metal part
AISI 304 stainless steel
Preorder
0
$576
Mechanical seal R-59B 90, CAR/SIC, PTFE, 304, BO
1053051
Stationary and rotating face
CAR/SIC
Material of metal part
AISI 304 stainless steel
Preorder
0
$610
Mechanical seal R-59B 90, CAR/SIC, PTFE, 316, BO
1053052
Stationary and rotating face
CAR/SIC
Material of metal part
AISI 316 stainless steel
Preorder
0
$610
Mechanical seal R-59B 90, CAR/SIC, PTFE, 304, BP
1053053
Stationary and rotating face
CAR/SIC
Material of metal part
AISI 304 stainless steel
Preorder
0
$610
Mechanical seal R-59B 95, CAR/SIC, PTFE, 304, BO
1053054
Stationary and rotating face
CAR/SIC
Material of metal part
AISI 304 stainless steel
Preorder
0
$644
Mechanical seal for pump shaft R-59B 16, CAR/SIC, PTFE, 304, BP
1009191
Stationary and rotating face
CAR/SIC
Material of metal part
AISI 304 stainless steel
Preorder
0
$109
Mechanical seal for pump R-59B 18, CAR/SIC, PTFE, 304, BP
1009192
Stationary and rotating face
CAR/SIC
Material of metal part
AISI 304 stainless steel
Preorder
0
$119

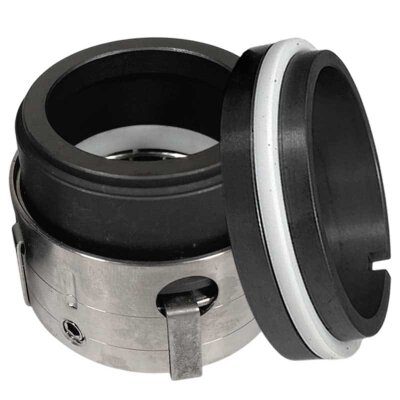

Mechanical seal R-59B 20, CAR/SIC, PTFE, 304, BP
1009193
Stationary and rotating face
CAR/SIC
Material of metal part
AISI 304 stainless steel
Preorder
0
$133

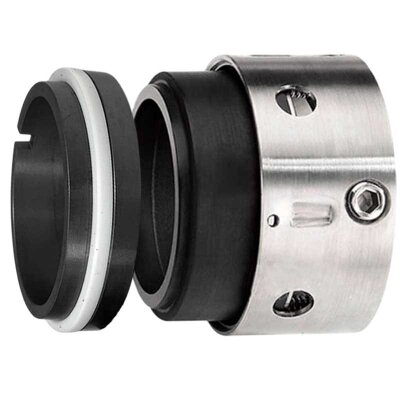

Mechanical seal R-59B 22, CAR/SIC, PTFE, 304, BP
1009194
Stationary and rotating face
CAR/SIC
Material of metal part
AISI 304 stainless steel
Preorder
0
$140

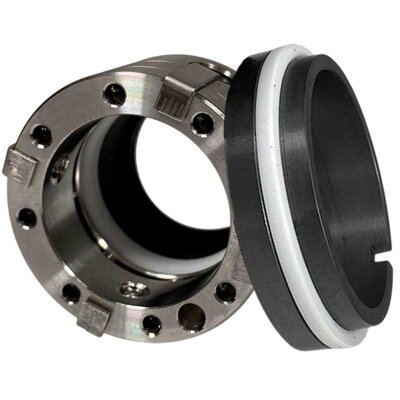

Mechanical seal R-59B 24, CAR/SIC, PTFE, 304, BP
