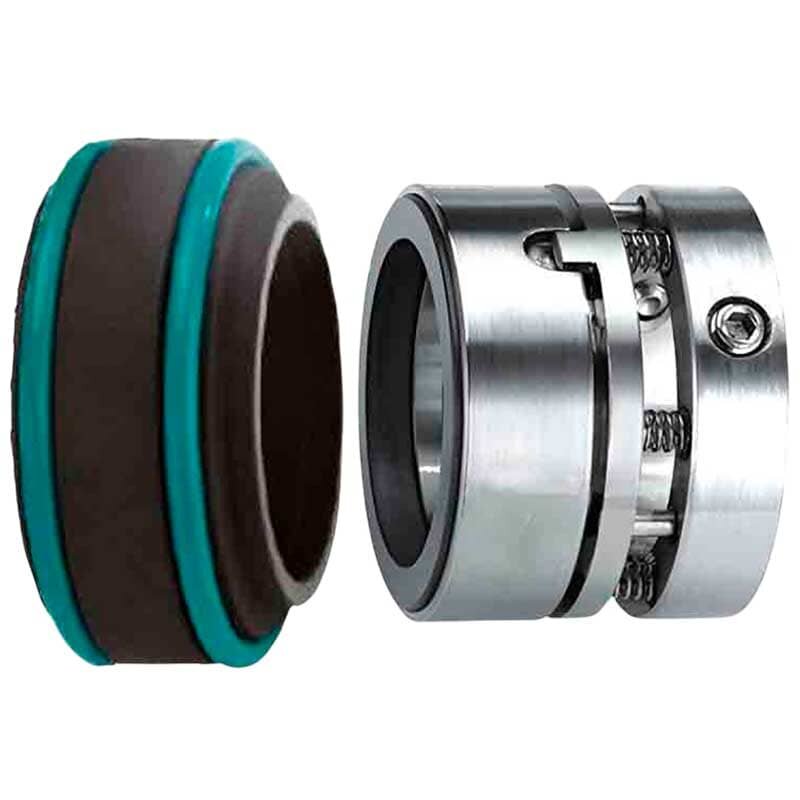

Mechanical seal R-960 63, SIC/SIC, VITON, 304, T30LE

Code: 1009458
(0 review)
Stationary and rotating faceSIC/SIC
Material of metal partAISI 304 stainless steel
Shaft diameter63
Outer diameter of the fixed ring, mm94
Type of conta-ringT30LE
ProducerBTS Engineering
Operating temperature-20°C +200°C
Pressure1.2 MPa
Rubber typeVITON
Rotation velocity25 m / s
Seal typeR-960
Analogue forAESSEAL MP080
Gross weight, kg0.8
Length of transport packing, cm9,5
Width of transport packing, cm9,5
Height of transport packing, cm6,5
Show all features (16)
Warehouse Ukraine: Pre-order only
Warehouse Poland: Pre-order only
Warehouse Germany: Pre-order only
Warehouse Italy: Pre-order only
$336 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
R-960 is a mechanical seal, multi-spring, single. Widely used in the paper, textile, chemical and cleaning industries. Analogue of Flowserve RO series. Mechanical seal is used at temperatures from -20 to + 180°C, with a pressure of up to 1.2 MPa and a rotation speed of up to 25 m/sec. Mechanical seal for Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos pumps, for KSB pumps, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam pumps, for SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK pumps, for Tuchenhagen pumps, ALFA LAVAL, Donjoy, Mission Magnum.
Category: R-960
Stationary and rotating faceSIC/SIC
Material of metal partAISI 304 stainless steel
Shaft diameter63
Outer diameter of the fixed ring, mm94
Type of conta-ringT30LE
ProducerBTS Engineering
Operating temperature-20°C +200°C
Pressure1.2 MPa
Rubber typeVITON
Rotation velocity25 m / s
Seal typeR-960
Analogue forAESSEAL MP080
Gross weight, kg0.8
Length of transport packing, cm9,5
Width of transport packing, cm9,5
Height of transport packing, cm6,5
