Mechanical seal R-BT-FN 16, SIC/SIC, EPDM, 304

Mechanical seal R-BT-FN 16, SIC/SIC, EPDM, 304

Click image for a larger view

Code: 13717_16__SIC/SIC__EPDM__304

(0 review)

Producer	BTS Engineering
Shaft diameter	16
Rubber type	EPDM
Material of metal part	304
Stationary and rotating face	SIC/SIC
Operating temperature	-40°C +180°C
Pressure	1.4 MPa
Rotation velocity	15 m/s
Seal type	R-BT-FN
Application	Foras, Pentax, Speck pumpen, NMSHG, DAB, GTP, ALLWEILER, DWO, SAER, GESPASA, LOWARA, Calpeda, Pedrollo, Sprut, Ebara, KM, WILO, Inoxpa, Speroni
Analogue for	Hermetica М112К.FR, Roten 3, Roplan R62, US SEAL VGMB, Flowserve 43, Latty T901, Sterling SR3, DIMER TCO.15-12, LIDERING FN, LIDERING LS15, Burgmann BT-FN, AESSEAL T04, Vulcan 13
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10

Show all features (15)

Documentation

Description Mechanical seal R-BT-FN 16, SIC/SIC, EPDM, 304

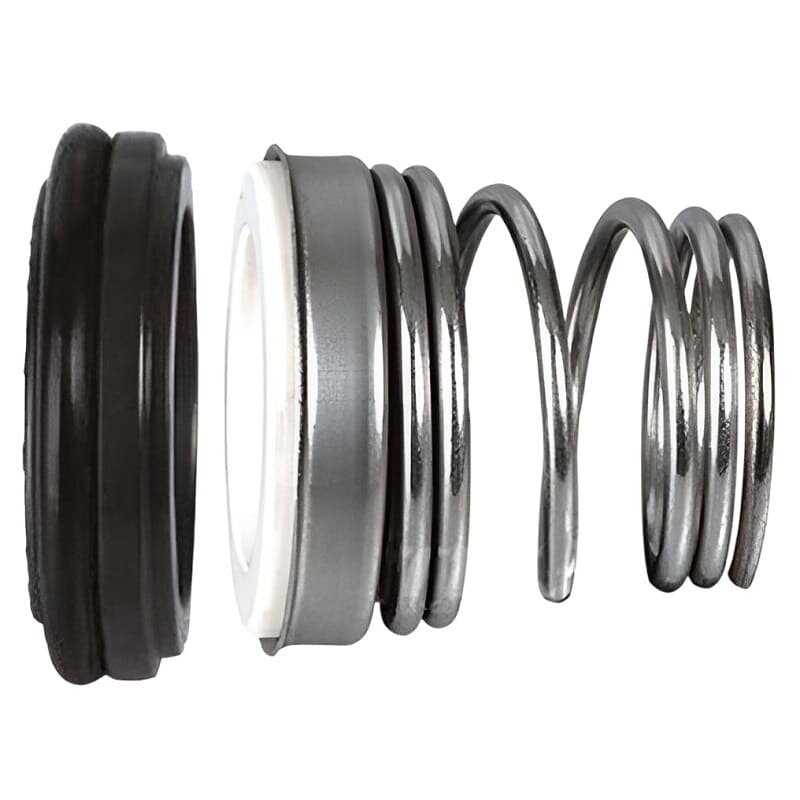

Single mechanical seal with conical spring and one-way direction of rotation. Used in pumps and circulation pumps. Possible application in pumps Lowara (CEA120), Calpeda (NM, MXH, MPC, GXC / GXV), Ebara (CDX, 2CDX, CDXM), Pedrolo (F) and others. Analog mechanical seals: Burgmann BT-FN, Roten 3, Vulcan 13. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Categories: R-BT-FN Mechanical seals of Nocchi pump

Features Mechanical seal R-BT-FN 16, SIC/SIC, EPDM, 304

Producer	BTS Engineering
Shaft diameter	16
Rubber type	EPDM
Material of metal part	304
Stationary and rotating face	SIC/SIC
Operating temperature	-40°C +180°C
Pressure	1.4 MPa
Rotation velocity	15 m/s
Seal type	R-BT-FN
Application	Foras, Pentax, Speck pumpen, NMSHG, DAB, GTP, ALLWEILER, DWO, SAER, GESPASA, LOWARA, Calpeda, Pedrollo, Sprut, Ebara, KM, WILO, Inoxpa, Speroni
Analogue for	Hermetica М112К.FR, Roten 3, Roplan R62, US SEAL VGMB, Flowserve 43, Latty T901, Sterling SR3, DIMER TCO.15-12, LIDERING FN, LIDERING LS15, Burgmann BT-FN, AESSEAL T04, Vulcan 13
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10
