Mechanical seal for pump shaft R-BT-FN 40, SIC/SIC, VITON, 316

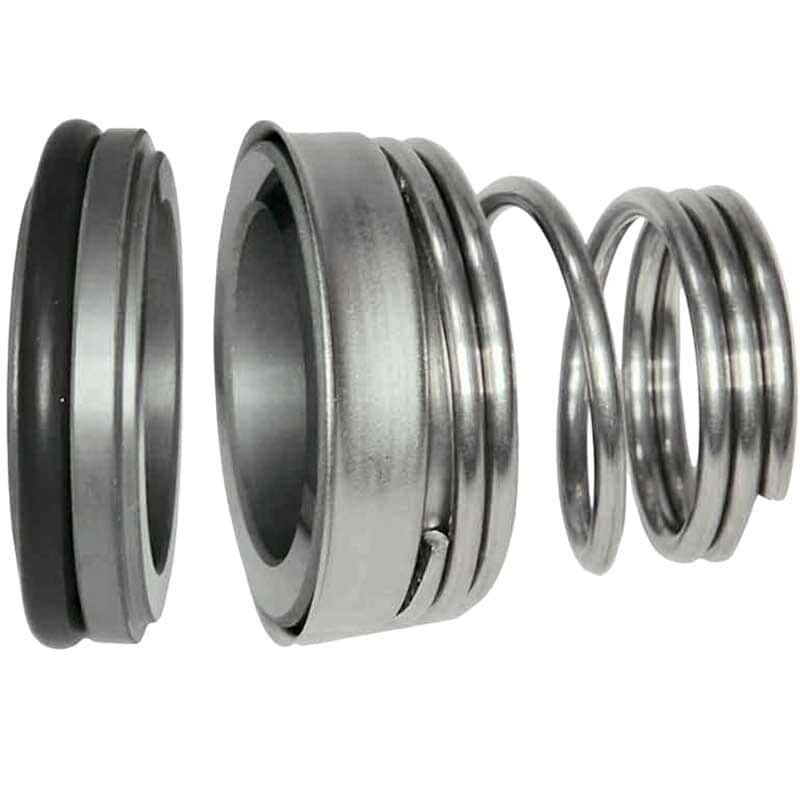

Mechanical seal for pump shaft R-BT-FN 40, SIC/SIC, VITON, 316

Click image for a larger view

More +4

Code: 1053743

(0 review)

Stationary and rotating face	SIC/SIC
Material of metal part	AISI 316 stainless steel
Shaft diameter	40
Outer diameter of the fixed ring, mm	60,5
Producer	BTS Engineering
Operating temperature	-40°C +180°C
Pressure	1.4 MPa
Rubber type	VITON
Rotation velocity	15 m/s
Seal type	R-BT-FN
Application	DAB, GTP, NMSHG, KM, LOWARA, Calpeda, Pedrollo, GESPASA, Sprut, Ebara, WILO, Speck pumpen, Inoxpa, Speroni, ALLWEILER, DWO, Foras, Pentax, SAER
Analogue for	LIDERING LS15, Roplan R62, US SEAL VGMB, Roten 3, Flowserve 43, Latty T901, Sterling SR3, DIMER TCO.15-12, LIDERING FN, Burgmann BT-FN, AESSEAL T04, Vulcan 13, Hermetica М112К.FR
Gross weight, kg	0.2
Length of transport packing, cm	6,5
Width of transport packing, cm	6,5
Height of transport packing, cm	6,5

Show all features (16)

Documentation

Description Mechanical seal for pump shaft R-BT-FN 40, SIC/SIC, VITON, 316

Single mechanical seal with conical spring and one-way rotation. Used in pumps and circulators. Can be used in pumps Lowara (CEA120), Calpeda (NM, MXH, MPC, GXC / GXV), Ebara (CDX, 2CDX, CDXM), Pedrolo (F) and others. Analogue of mechanical seals: Burgmann BT-FN, Roten 3, Vulcan 13. Mechanical seal for Wilo pump, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos, for KSB pump, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for SPERONI pump, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for Tuchenhagen pump, ALFA LAVAL, Donjoy, Mission Magnum.

Features Mechanical seal for pump shaft R-BT-FN 40, SIC/SIC, VITON, 316

Stationary and rotating face	SIC/SIC
Material of metal part	AISI 316 stainless steel
Shaft diameter	40
Outer diameter of the fixed ring, mm	60,5
Producer	BTS Engineering
Operating temperature	-40°C +180°C
Pressure	1.4 MPa
Rubber type	VITON
Rotation velocity	15 m/s
Seal type	R-BT-FN
Application	DAB, GTP, NMSHG, KM, LOWARA, Calpeda, Pedrollo, GESPASA, Sprut, Ebara, WILO, Speck pumpen, Inoxpa, Speroni, ALLWEILER, DWO, Foras, Pentax, SAER
Analogue for	LIDERING LS15, Roplan R62, US SEAL VGMB, Roten 3, Flowserve 43, Latty T901, Sterling SR3, DIMER TCO.15-12, LIDERING FN, Burgmann BT-FN, AESSEAL T04, Vulcan 13, Hermetica М112К.FR
Gross weight, kg	0.2
Length of transport packing, cm	6,5
Width of transport packing, cm	6,5
Height of transport packing, cm	6,5
