| Stationary and rotating face | SIC/SIC |
| Material of metal part | AISI 304 stainless steel |
| Shaft diameter | 38 |
| Outer diameter of the fixed ring, mm | 60,5 |
| Type of conta-ring | T8RN |
| Producer | BTS Engineering |
| Operating temperature | -40°C +200°C |
| Pressure | 1.0 MPa |
| Rubber type | VITON |
| Rotation velocity | 15 m/s |
| Seal type | R-BT-RN |
| Application | Calpeda |
| Analogue for | Burgmann BT-RN, LIDERING RN / LS60, Latty T900, Flowserve 42, Roten 2, Vulcan 12, AESSEAL T03, AESSEAL T03U, DIMER TCO.121-12 |
| Gross weight, kg | 0.2 |
| Length of transport packing, cm | 6,5 |
| Width of transport packing, cm | 6,5 |
| Height of transport packing, cm | 6,5 |
| Stationary and rotating face | SIC/SIC |
| Material of metal part | AISI 304 stainless steel |
| Shaft diameter | 38 |
| Outer diameter of the fixed ring, mm | 60,5 |
| Type of conta-ring | T8RN |
| Producer | BTS Engineering |
| Operating temperature | -40°C +200°C |
| Pressure | 1.0 MPa |
| Rubber type | VITON |
| Rotation velocity | 15 m/s |
| Seal type | R-BT-RN |
| Application | Calpeda |
| Analogue for | Burgmann BT-RN, LIDERING RN / LS60, Latty T900, Flowserve 42, Roten 2, Vulcan 12, AESSEAL T03, AESSEAL T03U, DIMER TCO.121-12 |
| Gross weight, kg | 0.2 |
| Length of transport packing, cm | 6,5 |
| Width of transport packing, cm | 6,5 |
| Height of transport packing, cm | 6,5 |

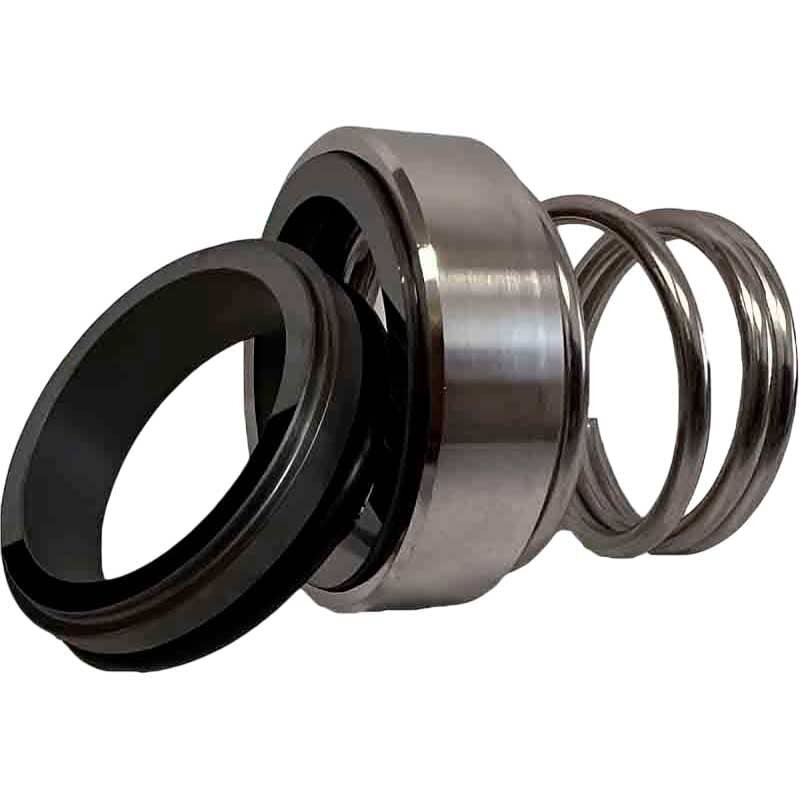

Download instructions, catalog for Single mechanical seal for pump R-BT-RN 38, SS/CAR, VITON, 304, T8RN
