Mechanical seal for pump R-HRN 70, SIC/SIC, VITON, 304
Click image for a larger view

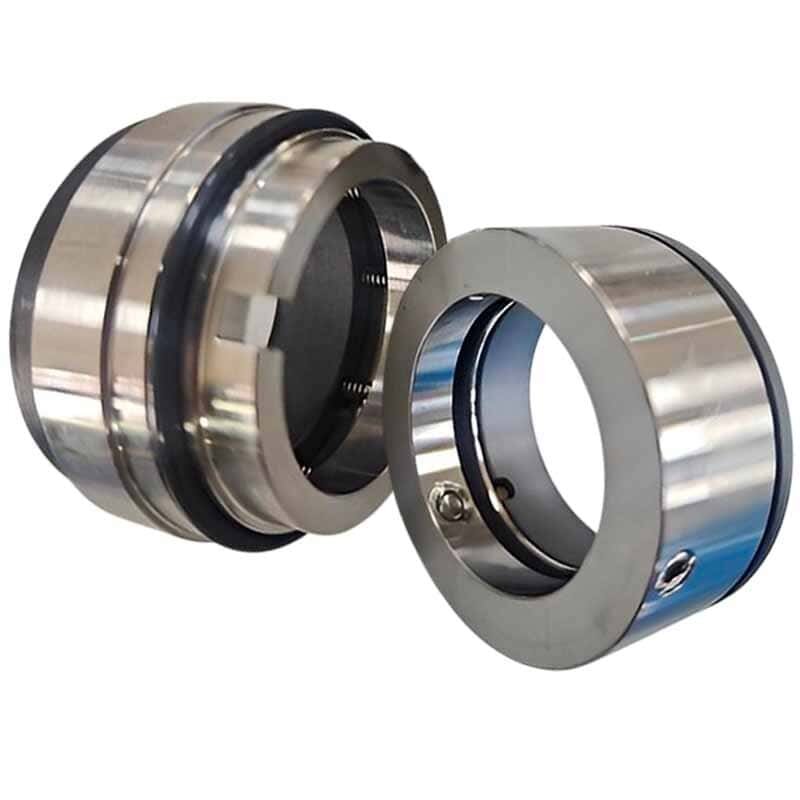

Mechanical seal for pump R-HRN 70, SIC/SIC, VITON, 304
Mechanical seal for pump R-HRN 70, SIC/SIC, VITON, 304
Mechanical seal for pump R-HRN 70, SIC/SIC, VITON, 304
Mechanical seal for pump R-HRN 70, SIC/SIC, VITON, 304
Mechanical seal for pump R-HRN 70, SIC/SIC, VITON, 304
More +1

Mechanical seal for pump R-HRN 70, SIC/SIC, VITON, 304

Code: 1054028
(0 review)
Stationary and rotating faceSIC/SIC
Material of metal partAISI 304 stainless steel
Shaft diameter70
Outer diameter of the fixed ring, mm92
ProducerBTS Engineering
Operating temperature-20°C +220°C
Pressure2.5 MPa
Rubber typeVITON
Rotation velocity20 m/s
Seal typeR-HRN
ApplicationHecker, Grundfos, Alfa Laval, WILO, KSB, Ebara, Calpeda, LOWARA, SAER
Analogue forBurgmann HRN, Roten EHS3
Gross weight, kg1.1
Length of transport packing, cm10,5
Width of transport packing, cm10,5
Height of transport packing, cm10,5
Show all features (16)
Documentation
Warehouse Ukraine: Pre-order only
Warehouse Poland: Pre-order only
Warehouse Germany: Pre-order only
Warehouse Italy: Pre-order only
$218 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
Single mechanical seal R-HRN - stationary rotor seal. Suitable for use in pumps operating in contaminated media, with abrasive particles, for wastewater. Can be used as part of a tandem. The stationary unit with a multi-spring block is isolated from the product, which prevents sticking and clogging. Applicable to pumps Alfa Laval, Ebara (3M, DWO), LOWARA, KSB (Etanorm, Etachrom), WILO (MVI, MHI, IPL), Grundfos (CDM), Saer (IP), Calpeda (GM, MXS), Hecker HN 410su. Analogs: Burgmann HRN, Roten EHS3 seal.
Category: R-HRN
Stationary and rotating faceSIC/SIC
Material of metal partAISI 304 stainless steel
Shaft diameter70
Outer diameter of the fixed ring, mm92
ProducerBTS Engineering
Operating temperature-20°C +220°C
Pressure2.5 MPa
Rubber typeVITON
Rotation velocity20 m/s
Seal typeR-HRN
ApplicationHecker, Grundfos, Alfa Laval, WILO, KSB, Ebara, Calpeda, LOWARA, SAER
Analogue forBurgmann HRN, Roten EHS3
Gross weight, kg1.1
Length of transport packing, cm10,5
Width of transport packing, cm10,5
Height of transport packing, cm10,5
