Mechanical seal R-M3N 20, SIC/SIC, VITON, 304, G6
Click image for a larger view
Mechanical seal R-M3N 20, SIC/SIC, VITON, 304, G6
Mechanical seal R-M3N 20, SIC/SIC, VITON, 304, G6
Mechanical seal R-M3N 20, SIC/SIC, VITON, 304, G6
-5%

Mechanical seal R-M3N 20, SIC/SIC, VITON, 304, G6

Code: 13755_20__SIC/SIC__VITON__304__G6
(0 review)
ProducerBTS Engineering
Shaft diameter20
Rubber typeVITON
Material of metal part304
Stationary and rotating faceSIC/SIC
Operating temperature-20°C +180°C
Pressure1.0 MPa
Rotation velocity15 m/s
Seal typeR-M3N
Type of conta-ringG6
ApplicationBSHM, KMS, Pumpenbau Schaffhausen AG (SIHI), Simaco, ERDURO, SLW, Inox (CSF Inox), LOWARA, Calpeda, Pedrollo, Ebara, KSB, KM, Hydro-Vacuum SA, ALLWEILER, Pentax, Flowserve (SIHI), Sieva
Analogue forHermetica М211К, Vulcan 8, US SEAL VGME-3, Hecker HN 430N, Flowserve 39, Flowserve CRO, Latty T800, US SEAL VGME-1, US SEAL VGME-2, Vulcan 8.DIN, Roten L4B, Roten 2E, Flowserve 38, Flowserve 38D, AESSEAL T01D, AESSEAL T02, Burgmann M3N, Burgmann M32, AESSEAL T01, LIDERING LS18/ LS19, Anga A3
Gross weight, kg0.25
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
Show all features (16)
Documentation
Ukraine: In stock
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$57.97 (netto) $61.02
Добавить в сравнение
We deliver anywhere in the world

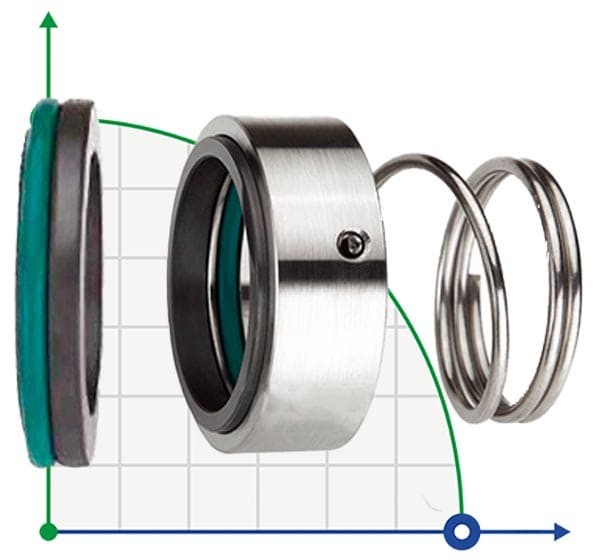

Single unbalanced seal with conical spring, unilateral direction of movement. It has a wide range of destinations in the water, sewage, submersible, chemical pumps. It is applied at temperatures from -20 to + 180°C, a pressure up to 1 MPa and the rotation speed to 15 m/sec. Possible use in pumps: Allweiler, Lowara, Salpeda (N4, NM4), CM and others. Analog mechanical seals: Burgmann M3N / M3 / M32 / M37G / M37, Flowserve Pac-Seal 38 / 38D / 39, Vulcan Type 8 / 8.DIN / 8D, AESSEAL T01 / T01D / T02, ROTEN 2/22/5 / L4B , ANGA A3, Sealant M211K. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Categories: R-M3NMechanical seals of Allweiler pumpMechanical seals of K, KM, X, AH, AHP, AHo, HMM, HMs pump
ProducerBTS Engineering
Shaft diameter20
Rubber typeVITON
Material of metal part304
Stationary and rotating faceSIC/SIC
Operating temperature-20°C +180°C
Pressure1.0 MPa
Rotation velocity15 m/s
Seal typeR-M3N
Type of conta-ringG6
ApplicationBSHM, KMS, Pumpenbau Schaffhausen AG (SIHI), Simaco, ERDURO, SLW, Inox (CSF Inox), LOWARA, Calpeda, Pedrollo, Ebara, KSB, KM, Hydro-Vacuum SA, ALLWEILER, Pentax, Flowserve (SIHI), Sieva
Analogue forHermetica М211К, Vulcan 8, US SEAL VGME-3, Hecker HN 430N, Flowserve 39, Flowserve CRO, Latty T800, US SEAL VGME-1, US SEAL VGME-2, Vulcan 8.DIN, Roten L4B, Roten 2E, Flowserve 38, Flowserve 38D, AESSEAL T01D, AESSEAL T02, Burgmann M3N, Burgmann M32, AESSEAL T01, LIDERING LS18/ LS19, Anga A3
Gross weight, kg0.25
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
