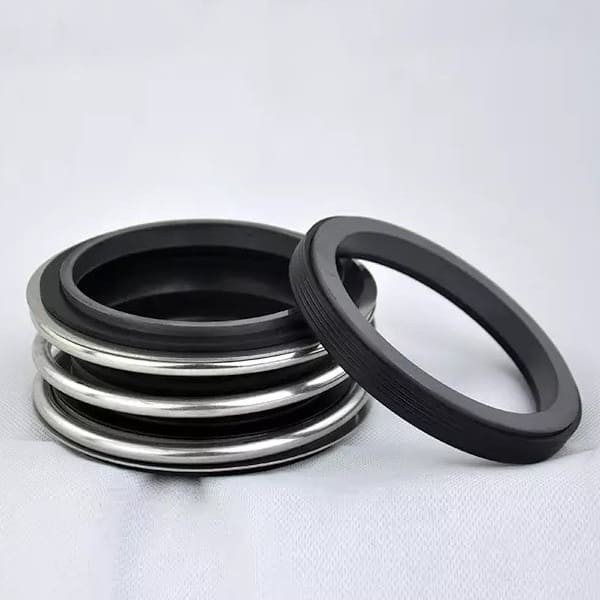

Single mechanical, mechanical seal of the STERLING SMG1 pump shaft, bellows type, unloaded, with a central spring, independent of the direction of rotation of the shaft. It is used in centrifugal pumps, mixers and other equipment.it is especially recommended for media containing solid inclusions (for example, wastewater).
It is used at temperatures from -20 to + 140°C, with a pressure of up to 1.6 MPA and a rotation speed of up to 10 m/sec.
It can be used in Alfa Laval, Ebara, Lowara, KSB (Etanorm, Etachrom), WILO (MVI, MHI, IPL / DPL), Grundfos (CDM), Saer (IP), Calpeda (GM, MXS) , GNOME, km, dab, Johnson Pump, Foras, Zenit (DTRT) and other pumps.
Analogs: LIDERING LRB17, Burgmann MG1, AESSEAL B02, AESSEAL B09U, Roten L3, Flowserve 190, Latty T700, Hermetyka M212.N2, Sterling SMG1, Anga A1, dimer TCP.1-60, US SEAL VGMC-1, BTS Engineering R-MG1
