STERLING SU3 mechanical seal

Product list

Click image for a larger view

Code: 1039085

Producer	STERLING
Operating temperature	-20°C +180°C
Pressure	1.4 MPa
Rotation velocity	15 m/s
Seal type	R-BT-FN.NU
Application	GTP, Processpumpar, GZA (SM), Flowserve (SIHI), DAB, Grundfos, Speroni, Ebara, Pedrollo, Calpeda, LOWARA
Analogue for	BTS R-BT-FN.NU, Hermetica М112К.FRA, Vulcan 13.DIN, AESSEAL T04D, Burgmann BT-FN.NU, DIMER TCO.15-7, Flowserve 43D, Latty T901D, Roplan R62D, Sterling SU3
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10

Show all features (11)

Description STERLING SU3 mechanical seal

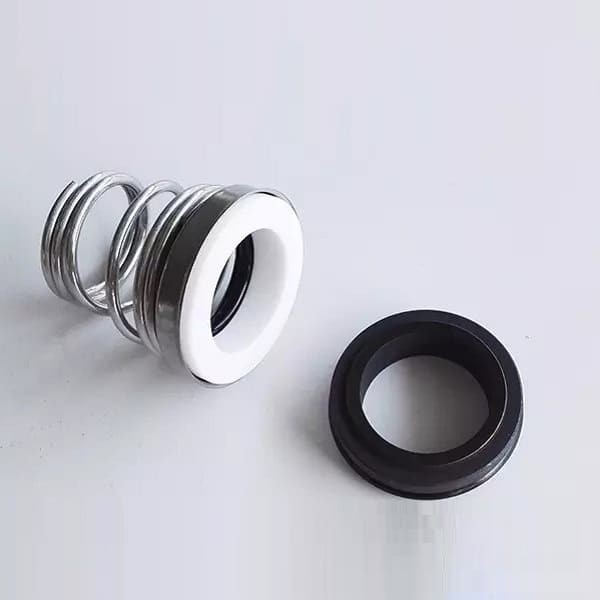

STERLING SU3 single mechanical mechanical seal with conical spring and one-way direction of rotation. The seal is unloaded. A conical spring seal is widely used. Recommended for tandem pumps, clean water milking pumps, and home and garden pumps. The Rotary ceramic movable ring is sealed in the installed part by an auxiliary circular ring. It can be used in lowara, Ebara (3m) and other pumps. Analogs: Burgmann BT-FN.NU, AESSEAL T04D, Vulcan 13.DIN, Sterling SU3, Roplan R62D, Latty T901D, Flowserve 43D, dimer TCO.15-7, Hermetica M112K. FRA, BTS Engineering R-BT-FN.NU

Category: Mechanical seal STERLING

Features STERLING SU3 mechanical seal

Producer	STERLING
Operating temperature	-20°C +180°C
Pressure	1.4 MPa
Rotation velocity	15 m/s
Seal type	R-BT-FN.NU
Application	GTP, Processpumpar, GZA (SM), Flowserve (SIHI), DAB, Grundfos, Speroni, Ebara, Pedrollo, Calpeda, LOWARA
Analogue for	BTS R-BT-FN.NU, Hermetica М112К.FRA, Vulcan 13.DIN, AESSEAL T04D, Burgmann BT-FN.NU, DIMER TCO.15-7, Flowserve 43D, Latty T901D, Roplan R62D, Sterling SU3
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10
