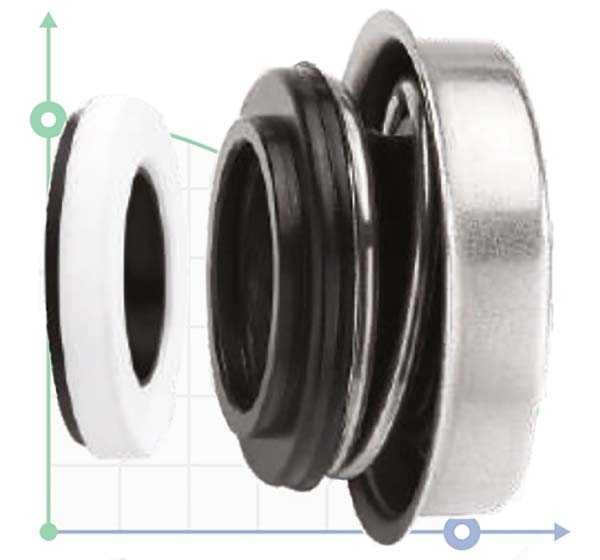

Mechanical seal R-6A 15, SIC/SIC, NBR, 304

Mechanical seal R-6A 15, SIC/SIC, NBR, 304

Click image for a larger view

Code: 13703_15__SIC/SIC__NBR__304

(0 review)

Producer	BTS Engineering
Shaft diameter	15
Rubber type	NBR
Material of metal part	304
Stationary and rotating face	SIC/SIC
Rate of turn, rpm	5 000
Operating temperature	-20°C +100°C
Pressure	0,3 MPa
Seal type	R-6A
Analogue for	LIDERING LRB03, Vulcan 75, AESSEAL B03U, AESSEAL B03, Burgmann BT-A2, John Crane 6A, LIDERING LRB03B, LIDERING LRB03A, Sealol 7, Latty T70, Flowserve 170, Roten 68, Vulcan 70, US SEAL B
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10

Show all features (14)

Documentation

Description Mechanical seal R-6A 15, SIC/SIC, NBR, 304

6A R-mechanical seal is used at temperatures ranging from -20 to + 100°C, a pressure of 0 to 3 MPa, and the rotational speed to 5000 rev/min. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Category: R-6A

Features Mechanical seal R-6A 15, SIC/SIC, NBR, 304

Producer	BTS Engineering
Shaft diameter	15
Rubber type	NBR
Material of metal part	304
Stationary and rotating face	SIC/SIC
Rate of turn, rpm	5 000
Operating temperature	-20°C +100°C
Pressure	0,3 MPa
Seal type	R-6A
Analogue for	LIDERING LRB03, Vulcan 75, AESSEAL B03U, AESSEAL B03, Burgmann BT-A2, John Crane 6A, LIDERING LRB03B, LIDERING LRB03A, Sealol 7, Latty T70, Flowserve 170, Roten 68, Vulcan 70, US SEAL B
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10
