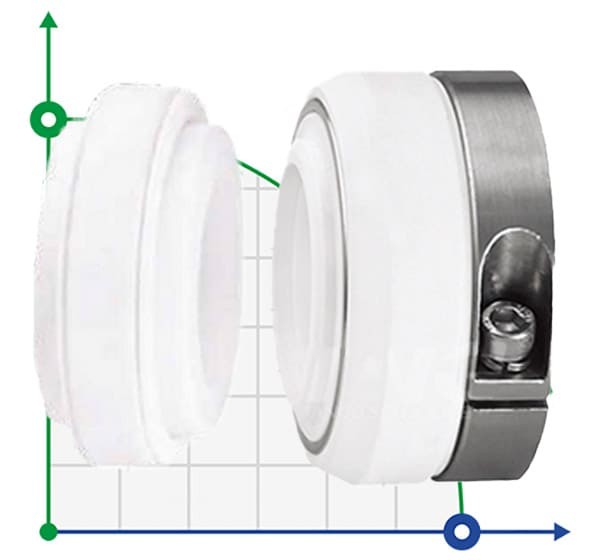

Mechanical Seal for shaft R-10T 1.5/8, SIC/SIC, PTFE, 304, V

Mechanical Seal for shaft R-10T 1.5/8, SIC/SIC, PTFE, 304, V

Click image for a larger view

Code: 10550_1.5/8__SIC/SIC__PTFE__304__V

(0 review)

Producer	BTS Engineering
Shaft diameter	1.5/8
Rubber type	PTFE
Material of metal part	304
Stationary and rotating face	SIC/SIC
Operating temperature	from -20 to +120
Pressure	0,8 MPa
Rotation velocity	13 m/s
Seal type	R-10T
Type of conta-ring	V
Analogue for	AESSEAL B08, Anga A10, Flowserve TBR, John Crane 10T, LIDERING LTB16, Corropac 30, Fluiten ES
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10

Show all features (15)

Documentation

Description Mechanical Seal for shaft R-10T 1.5/8, SIC/SIC, PTFE, 304, V

Mechanical seal R-10 is used at temperatures ranging from -20 to + 120°C, a pressure of 0 to 8 MPa, and the rotational speed to 13m/s. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Category: R-10T, 10R

Features Mechanical Seal for shaft R-10T 1.5/8, SIC/SIC, PTFE, 304, V

Producer	BTS Engineering
Shaft diameter	1.5/8
Rubber type	PTFE
Material of metal part	304
Stationary and rotating face	SIC/SIC
Operating temperature	from -20 to +120
Pressure	0,8 MPa
Rotation velocity	13 m/s
Seal type	R-10T
Type of conta-ring	V
Analogue for	AESSEAL B08, Anga A10, Flowserve TBR, John Crane 10T, LIDERING LTB16, Corropac 30, Fluiten ES
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10
