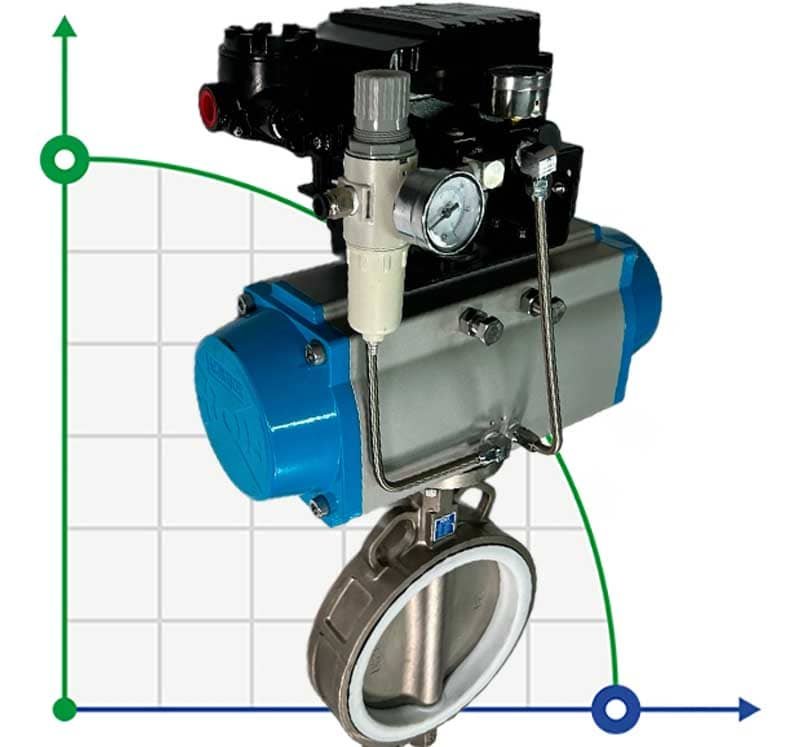

PN6 DN200 Wafer butterfly valve, body and disc AISI 304, PTFE, Double acting Pneumatic actuator Ex+positioner 4-20MA

Click image for a larger view

More +4

Code: 1042556

(0 review)

Conditional passage,DN	200
Material of the disk	AISI 304 stainless steel
Control signal, mA	4-20
Producer	BTS Engineering
Explosion protection	Yes
Nom.pressure, Mpa	0,6
Seal material	PTFE
Housing material	AISI 304 stainless steel
Connection type	interflange
Operating temperature	-60°C + 260°C
Country of Origin	China
Drive Type	pneumatic
Working Environment	water, air, liquids, thick and viscous liquids, mildly corrosive liquids, ethanol

Show all features (13)

Documentation

Description PN6 DN200 Wafer butterfly valve, body and disc AISI 304, PTFE, Double acting Pneumatic actuator Ex+positioner 4-20MA

Butterfly gate valve with double-acting pneumatic actuators and positioner is used to control and shut off the flow of working medium in the pipeline. The locking (control) element in the gate valve is a rotary disc. The body and disc are made of stainless steel AISI 304. Butterfly gate valve or disc butterfly valve is used to control and shut off liquid and gaseous media in production facilities and enterprises of heat and power, gas and water supply, chemical, oil refining, food and other industries.

Category: Butterfly valves

Features PN6 DN200 Wafer butterfly valve, body and disc AISI 304, PTFE, Double acting Pneumatic actuator Ex+positioner 4-20MA

Conditional passage,DN	200
Material of the disk	AISI 304 stainless steel
Control signal, mA	4-20
Producer	BTS Engineering
Explosion protection	Yes
Nom.pressure, Mpa	0,6
Seal material	PTFE
Housing material	AISI 304 stainless steel
Connection type	interflange
Operating temperature	-60°C + 260°C
Country of Origin	China
Drive Type	pneumatic
Working Environment	water, air, liquids, thick and viscous liquids, mildly corrosive liquids, ethanol

Documentation PN6 DN200 Wafer butterfly valve, body and disc AISI 304, PTFE, Double acting Pneumatic actuator Ex+positioner 4-20MA

Download instructions, catalog for PN6 DN200 Wafer butterfly valve, body and disc AISI 304, PTFE, Double acting Pneumatic actuator Ex+positioner 4-20MA
