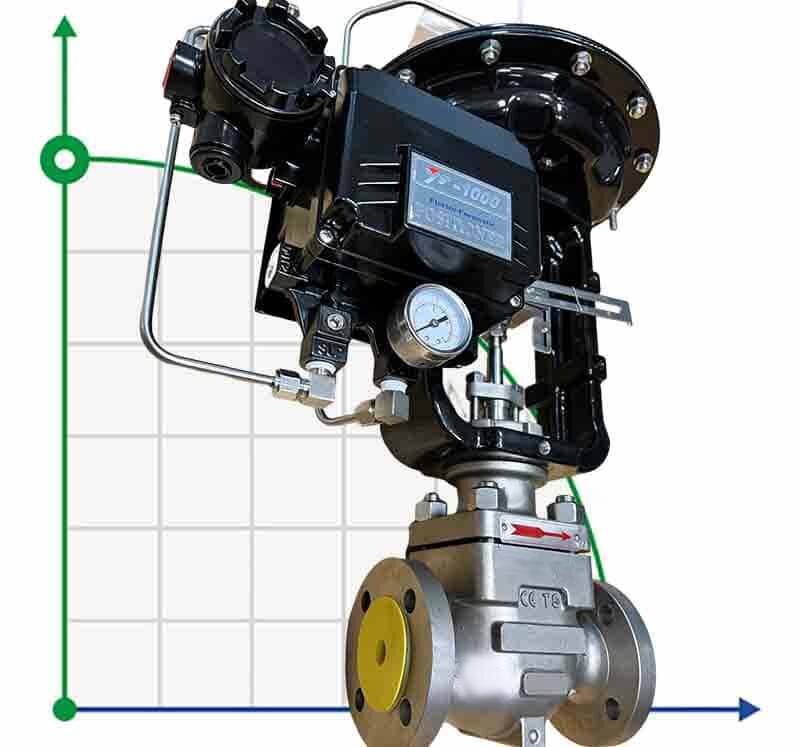

1/2 inch Pneumatically actuated control valve for steam 10Р11Y-1/2-150LB-Z-L112C-C (CF3 body, 316L seat) with YT-1000 positioner, 4-20mA input

Click image for a larger view

Code: 1046836

(0 review)

Conditional passage,DN	1/2"
Control signal, mA	4-20
Mode of action	normally closed
Producer	BTS Engineering
Explosion protection	No
Nom.pressure, Mpa	1
Housing material	AISI 304L
Connection type	flanged
Operating temperature	–17°C +230°C
Country of Origin	China
Working Environment	water, air, steam, liquids, thick and viscous liquids, non-corrosive environment

Show all features (11)

Documentation

Description 1/2 inch Pneumatically actuated control valve for steam 10Р11Y-1/2-150LB-Z-L112C-C (CF3 body, 316L seat) with YT-1000 positioner, 4-20mA input

Control valve with pneumatic drive and actuator, control 4-20 mA shut-off, single-seat, two-way vertical control valve. RA is a linear pneumatic drive of the membrane type. The drive has two versions: DA - direct action, normally open (air pressure closes the valve) and RA - reverse action, normally closed (air pressure opens the valve). A wide range of applications allows this valve to be used with the most common process fluids, such as water, superheated water, steam, air, gases and other non-aggressive liquids. BASIC PROPERTIES: Single-seat, two-way, direct or reverse action. Reinstalling the drive does not require disassembly. Valves from the pipeline.

Category: Control valves with positioner and pneumatic actuator

Features 1/2 inch Pneumatically actuated control valve for steam 10Р11Y-1/2-150LB-Z-L112C-C (CF3 body, 316L seat) with YT-1000 positioner, 4-20mA input

Conditional passage,DN	1/2"
Control signal, mA	4-20
Mode of action	normally closed
Producer	BTS Engineering
Explosion protection	No
Nom.pressure, Mpa	1
Housing material	AISI 304L
Connection type	flanged
Operating temperature	–17°C +230°C
Country of Origin	China
Working Environment	water, air, steam, liquids, thick and viscous liquids, non-corrosive environment

Documentation 1/2 inch Pneumatically actuated control valve for steam 10Р11Y-1/2-150LB-Z-L112C-C (CF3 body, 316L seat) with YT-1000 positioner, 4-20mA input

Download instructions, catalog for 1/2 inch Pneumatically actuated control valve for steam 10Р11Y-1/2-150LB-Z-L112C-C (CF3 body, 316L seat) with YT-1000 positioner, 4-20mA input
