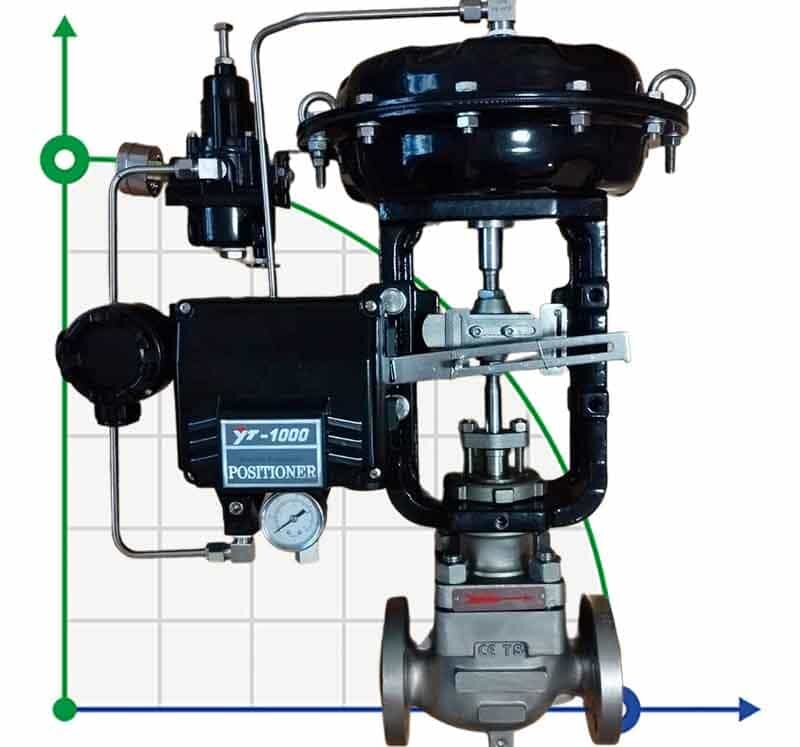

DN150 Pneumatic control valve 10T11Y-DNx15040Z-L112C-C (cast iron body, SS304 trim) with YT-1000 positioner, input 4-20mA

Code: 1050101
(0 review)
Conditional passage,DN150
Control signal, mA4-20
Mode of actionnormally closed
ProducerBTS Engineering
Explosion protectionNo
Nom.pressure, Mpa4
Housing materialСast iron
Connection typeflanged
Operating temperature–17°C +230°C
Country of OriginChina
Working Environmentsteam, steam condensate
Show all features (11)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$8,466.57 (netto)
Добавить в сравнение
We deliver anywhere in the world
Control valve with pneumatic drive and actuator, control 4-20 mA shut-off, single-seat, two-way vertical control valve. RA is a linear pneumatic drive of the membrane type. The drive has two versions: DA - direct action, normally open (air pressure closes the valve) and RA - reverse action, normally closed (air pressure opens the valve). A wide range of applications allows this valve to be used with the most common process fluids, such as water, superheated water, steam, air, gases and other non-aggressive liquids. BASIC PROPERTIES: Single-seat, two-way, direct or reverse action. Reinstalling the drive does not require disassembly. Valves from the pipeline.
Conditional passage,DN150
Control signal, mA4-20
Mode of actionnormally closed
ProducerBTS Engineering
Explosion protectionNo
Nom.pressure, Mpa4
Housing materialСast iron
Connection typeflanged
Operating temperature–17°C +230°C
Country of OriginChina
Working Environmentsteam, steam condensate

Download instructions, catalog for DN150 Pneumatic control valve 10T11Y-DNx15040Z-L112C-C (cast iron body, SS304 trim) with YT-1000 positioner, input 4-20mA
