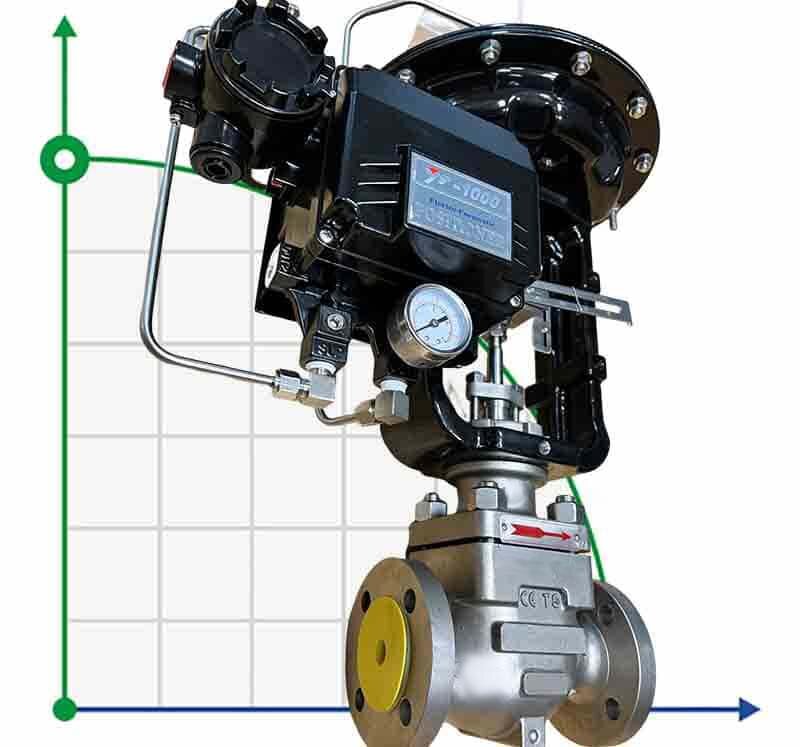

DN40 Pneumatically actuated control valve 10T11Y-DNx4040Z-L122C-C (body and seat 1.4404/1.4409) with positioner YT-1000, 4-20mA input, Ex

Click image for a larger view

Code: 1050093

(0 review)

Conditional passage,DN	40
Control signal, mA	4-20
Mode of action	normally open
Producer	BTS Engineering
Explosion protection	Yes
Nom.pressure, Mpa	4
Seal material	METAL
Housing material	AISI 316L
Connection type	flanged
Operating temperature	20°C
Country of Origin	China
Working Environment	вода, стічні води

Show all features (12)

Documentation

Description DN40 Pneumatically actuated control valve 10T11Y-DNx4040Z-L122C-C (body and seat 1.4404/1.4409) with positioner YT-1000, 4-20mA input, Ex

Control valve with pneumatic actuator and actuator, 4-20 mA control, single-seat, two-way straight-through valve. The wide range of applications allows this valve to be used with the most common process fluids such as water, superheated water, steam, air, gases and other non-aggressive liquids.

Category: Control valves with positioner and pneumatic actuator

Features DN40 Pneumatically actuated control valve 10T11Y-DNx4040Z-L122C-C (body and seat 1.4404/1.4409) with positioner YT-1000, 4-20mA input, Ex

Conditional passage,DN	40
Control signal, mA	4-20
Mode of action	normally open
Producer	BTS Engineering
Explosion protection	Yes
Nom.pressure, Mpa	4
Seal material	METAL
Housing material	AISI 316L
Connection type	flanged
Operating temperature	20°C
Country of Origin	China
Working Environment	вода, стічні води

Documentation DN40 Pneumatically actuated control valve 10T11Y-DNx4040Z-L122C-C (body and seat 1.4404/1.4409) with positioner YT-1000, 4-20mA input, Ex

Download instructions, catalog for DN40 Pneumatically actuated control valve 10T11Y-DNx4040Z-L122C-C (body and seat 1.4404/1.4409) with positioner YT-1000, 4-20mA input, Ex
