Tank volume | 62 |
Fuel type | diesel fuel |
Displacement, l | 3.17 |
Cylinder | 4×110×125 (cylinder number-bore×stoke) |
Engine manufacturer | XinChai |
Weighing capacity, kg | 3 000 |
Load center, mm | 500 |
Operator type | Drive in seat |
Max lift height of fork (standart), mm | 3 000 |
Height of mast (standart), mm | 2 260 |
Free lift height (standart), mm | 160 |
Overall width, mm | 1 560 |
Type of tyres | vacuum |
Tires Front | 14-17.5-14PR |
Tires Rear | 10.0/75-15.3-12PR |
Fork size, mm | 1070x125x50 |
Driving Brake | hydraulic/mechanical |
Wheel base, mm | 1 920 |
The distance between forks ((max/min), mm | 1500/250 |
Mast tilt angle (forward/backward), deg | 10°/12° |
Max lift height of mast with load-backrest, mm | 4410 |
Producer | Noelift |

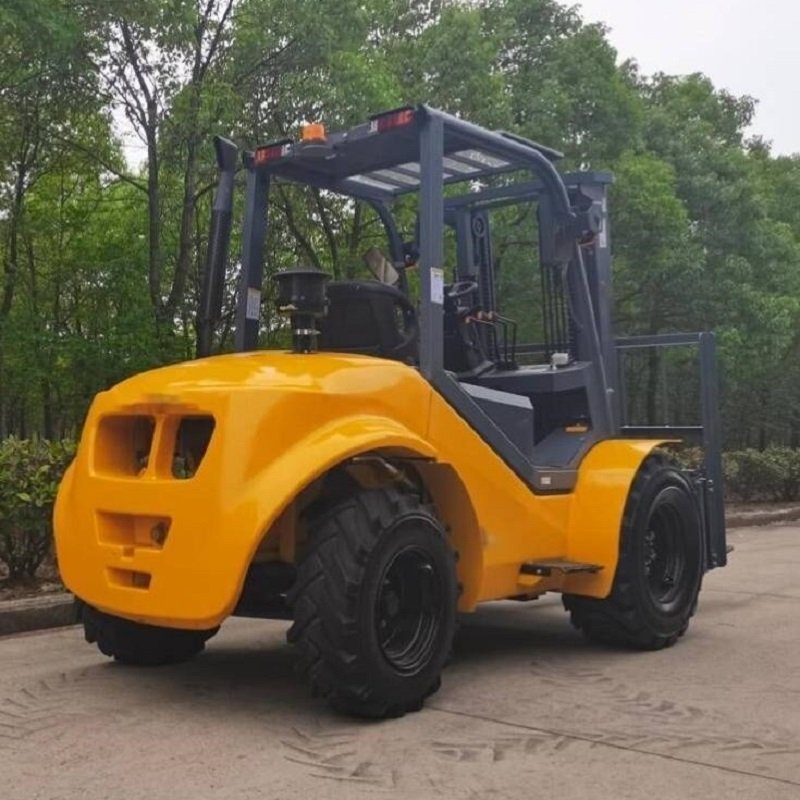

Model | CPCD30 4WD |
Rotation velocity | 21 km/h |
Country of Origin | China |
Total weight, kg | 5 400 |
