Fuel type | diesel fuel |
Weighing capacity, kg | 2 500 |
Load center, mm | 500 |
Operator type | Drive in seat |
Max lift height of fork (standart), mm | 3 000 |
Height of mast (standart), mm | 2 000 |
Free lift height (standart), mm | 170 |
Overhead guard height, mm | 2 070 |
Length with fork, mm | 3646/2576 |
Front overhang, mm | 477 |
Overall width, mm | 1 170 |
Type of tyres | Penumatic tires |
Tires Front | 7.00-12-12PR |
Tires Rear | 6.00-9-10PR |
Fork size, mm | 920x100x45 |
Additionally | the maximum lift height of the forklift is 6 meters, and the additional price is 500 dollars per meter |
Producer | Noelift |

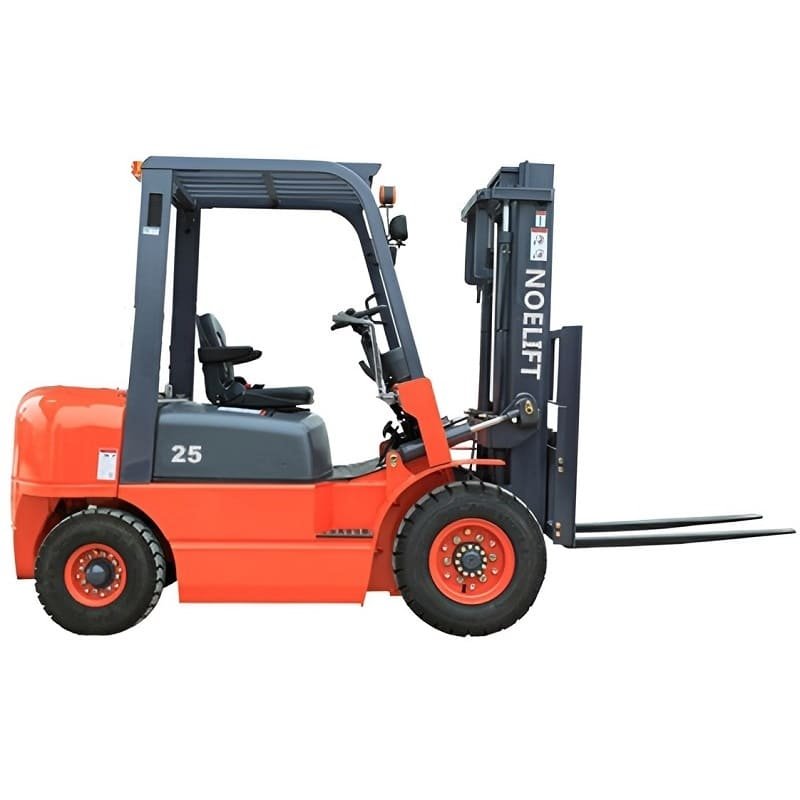

Model | FD25 |
Country of Origin | China |
Total weight, kg | 3 680 |
Fuel type | diesel fuel |
Weighing capacity, kg | 2 500 |
Load center, mm | 500 |
Operator type | Drive in seat |
Max lift height of fork (standart), mm | 3 000 |
Height of mast (standart), mm | 2 000 |
Free lift height (standart), mm | 170 |
Overhead guard height, mm | 2 070 |
Length with fork, mm | 3646/2576 |
Front overhang, mm | 477 |
Overall width, mm | 1 170 |
Type of tyres | Penumatic tires |
Tires Front | 7.00-12-12PR |
Tires Rear | 6.00-9-10PR |
Fork size, mm | 920x100x45 |
Additionally | the maximum lift height of the forklift is 6 meters, and the additional price is 500 dollars per meter |
Producer | Noelift |
Model | FD25 |
Country of Origin | China |
Total weight, kg | 3 680 |
Download instructions, catalog for FD25 diesel warehouse truck, 2.5 tons
